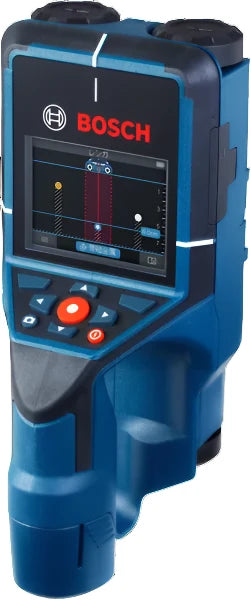

Bosch Wall Scanner D-tect 200 C Professional 06010816K0


Price:
Sale priceQAR 2,699

Description

  • More depth for better safety - Increased maximum detection depth to 200mm with object depth indication
  • All-round detection - Detection of all common objects, even in narrow spots with the unique spot mode
  • See the unseen - Clear visualisation of detected objects including the new leakage detection function through the intuitive HMI

Technical data

Dust and splash protection IP 5X
Bosch Radar Technology yes
Max. detection depth 200 mm
Detectable objects magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, low-voltage & data cables (Three-phase power cables, cavities), non-live cables, wooden substructures, water-filled plastic pipes, Empty plastic pipes
Detection depth, dry concrete, max. 200 mm
Detection depth, early age concrete, max. 60 mm
Detection depth, other wall types, max. 80 mm
Detection depth, magnetic metal, max. 200 mm
Detection depth, non-magnetic metal, max. 80 mm
Detection depth, live cables, max. 80 mm
Detection depth, wooden substructures, max. 38 mm
Accuracy ±5 mm
Views Object view, Spot view, Signal View, Signal View 2D
Wall types Concrete, Early age concrete, Drywall, Brick/Universal, Horizontal coring brick, Vertical coring brick, Panel Heating
Documentation via USB-C, SD-Card
Updatable yes
Material identification Magnetic metal, Non-magnetic metal, Non-metal material, Live cable
Power supply 12 V Li-Ion battery, 10.8 V-LI ION battery, 4 x 1.5 V LR6 (AA)
Weight, approx. 0.64 kg
Additional function Leakage detection, distance measurement
