Description

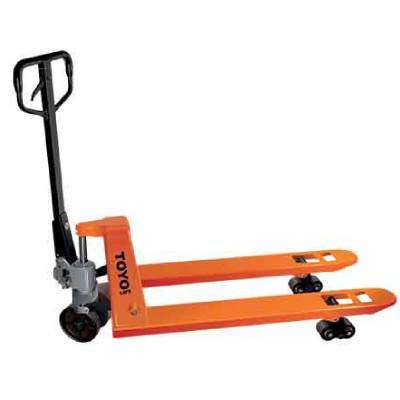

- Toyolift manual pallet Truck is a hand-powered Truck most commonly seen in retail and personal warehousing operations.
- They are used mainly for lifting, lowering and steering pallets from one place to another.
- The pallet is only lifted enough to clear the floor for subsequent travel.
- Oftentimes, pallet trucks are used to move and organize pallets inside a trailer, especially when there is no Forklift access or availability.
- Available capacity 2.5 Ton to 5Ton.
|
HAND PALLET TRUCK |
||||
|
Capacity |
Ton |
2.5 |
3.5 |
5 |
|
Service weight |
kg |
70 |
90 |
105 |
|
Steering wheel |
mm |
ø200 |
ø180 |
ø200 |
|
Fork wheel |
mm |
ø80 |
ø75 |
ø84 |
|
Max. light height |
h3(mm) |
185 |
175 |
195 |
|
Total height |
h14(mm) |
1224 |
1214 |
1240 |
|
Lowered fork height |
h13(mm) |
85 |
75 |
88 |
|
Overall length |
l1(mm) |
1533/1603 |
1533/1603 |
1533/1603 |
|
Fork dimension |
s/e/t |
50/160/1150 |
50/160/1150 |
60/160/1150 |
|
Distance between fork-arms outside |
b5(mm) |
550 |
550 |
550 |
|
Ground clearance centre of wheel base |
m2(mm) |
16 |
16 |
16 |
|
Aisle width for pallets 1000x1200 crossways |
Ast(mm) |
1730/1800 |
1730/1800 |
1730/1800 |
|
Aisle width for pallets 800x1200 lengthways |
Ast(mm) |
1730/1800 |
1730/1800 |
1730/1800 |
|
Turning radius |
Wa(mm) |
1266/1336 |
1266/1336 |
1266/1336 |
